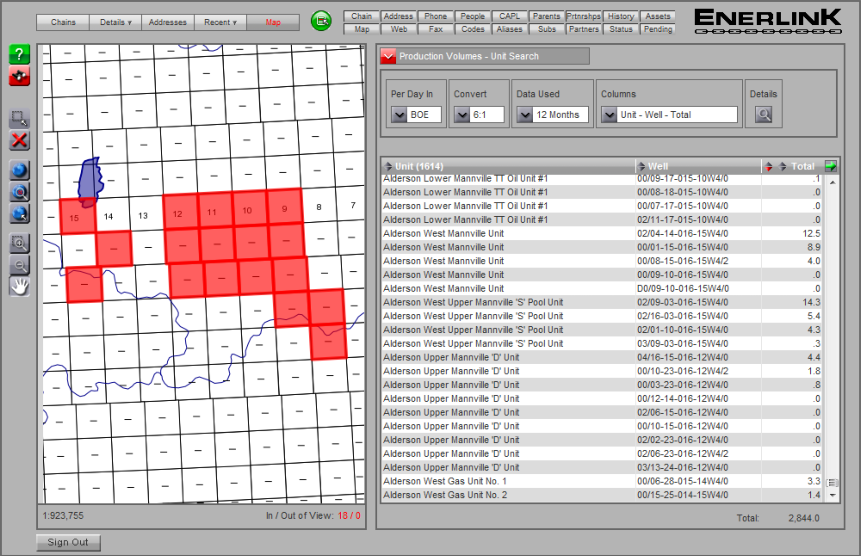

Map Screen Production Volumes
Map Select. For selecting townships on the map while in Map Select mode
Clear current search
Initial map view, to see the entire province
Zoom to selection
Go to township
Zoom in
Zoom out
Pan
Start a new search (when not in Map Select mode). Hover to view the search screen

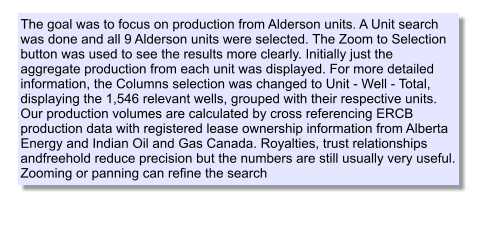

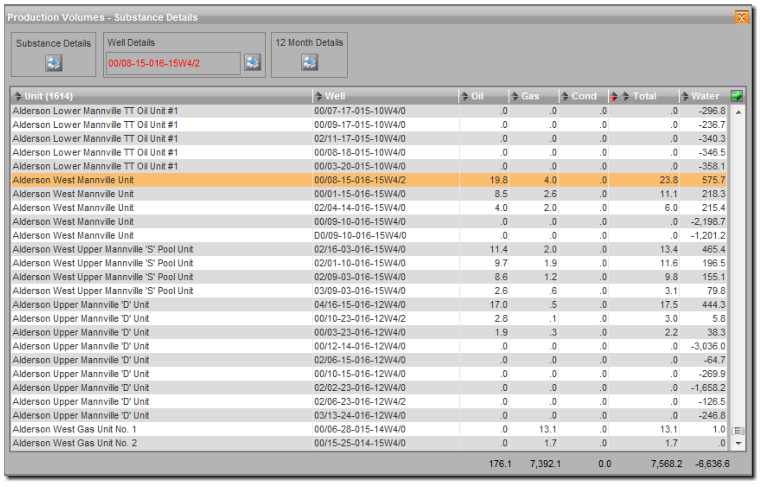

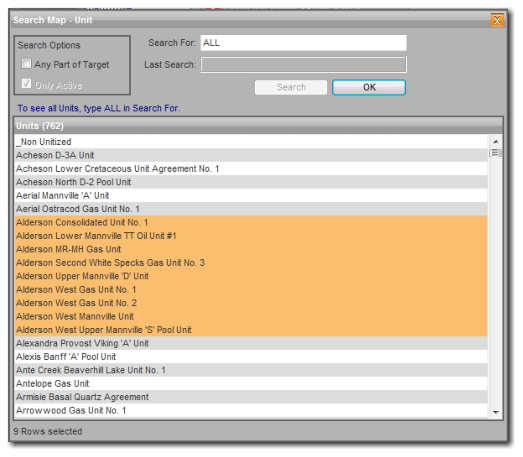

View results in BOE/d or Mcf/d; 6:1 or 10:1; considering production data from the preceding 12, 6, 3 or 1 months Choose which columns you wish to have displayed, among Entity, Field, Township, Unit and Well This shows the production per well in BOE/d (6:1) having regard to 12 months of production data. The total is below The goal was to focus on production from Alderson units. A Unit search was done and all 9 Alderson units were selected. The Zoom to Selection button was used to see the results more clearly. Initially just the aggregate production from each unit was displayed. For more detailed information, the Columns selection was changed to Unit - Well - Total, displaying the 1,546 relevant wells, grouped with their respective units. Our production volumes are calculated by cross referencing ERCB production data with registered lease ownership information from Alberta Energy and Indian Oil and Gas Canada. Royalties, trust relationships andfreehold reduce precision but the numbers are still usually very useful. Zooming or panning can refine the search Some townships meeting your search criterion may not be in the viewable portion of the map. Here is a quick way to find out Click the green arrow to export your data to a CSV file
View the annotated screen shot for this screen
The Green Menu Button has several menu items. Hover for details
Go to the various EnerLink screens using these buttons, without changing your last view there. Click to view other screens
Sign out of EnerLink
The Preview Pane indicates in red the information EnerLink has for the selected Entity. Click a pane to see the information
